Announced
May 05, 2022
Description

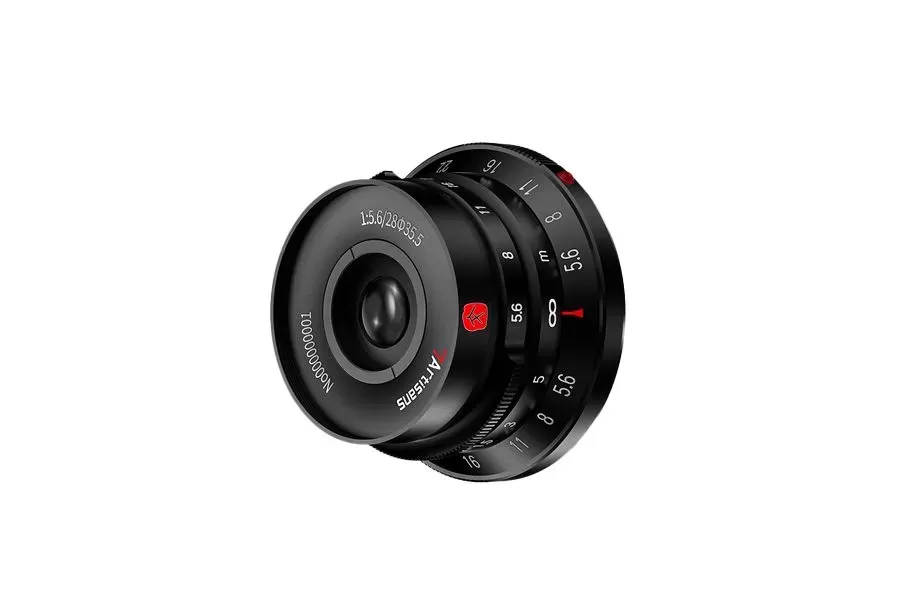

The M28mm F5.6 is a full-frame prime lens for Leica M-mount camera systems.
Opticical constuction includes 6 elements in 4 groups with 1 high refractive glass and 2 ED elements.
The lens is rangefinder coupled and features a infinity lock for locking focus at infinity, an aperture ring, depth of field scale and a focus ring.
The M28mm F5.6 lens weighs 130 grams, measures 44mm in length and 38mm in diameter and has a minimum focusing distance of 1m.
Opticical constuction includes 6 elements in 4 groups with 1 high refractive glass and 2 ED elements.
The lens is rangefinder coupled and features a infinity lock for locking focus at infinity, an aperture ring, depth of field scale and a focus ring.
The M28mm F5.6 lens weighs 130 grams, measures 44mm in length and 38mm in diameter and has a minimum focusing distance of 1m.
Lens Type
Prime
Lens Mount
Leica M
Format
35mm Full Frame
Year Released
2022
Focal Length
28 mm
Image Stabilisation
No
Max Aperture
F5.6
Max Aperture (F)
5.6
Min Aperture (F)
22
Aperture Ring
Yes
No. Diaphragm Blades
8
Elements
6
Groups
4
Special Elements
1 high refractive glass and 2 ED elements
Min Focal Length
28 mm
Max Focal Length
28 mm
Min Focus
1m
Auto Focus
No
Full Time Manual
Yes
Distance Scale
Yes
DOF Scale
Yes
Environmentally Sealed
No
Weight
130 g
Diameter
38 mm
Length
44 mm
Filter Thread
35.5 mm
Colour
Black
